General parameters: |
|
|
Typical applications: |
1. ASL:≤2500m
2. Humidity:≤85%
3. Fluid viscosity:0~3000CPS
4. Ambient Temp:0℃~50℃
5. Liquid temperature:-10℃≤T≤100℃
6. Operating mode:uninterrupted duty
7. Medium:acid, alkali, salt, oil, organic solvents
|
|
1.Medical treatment machine |
|
2.Water treatment & Printing |
|
3.Industry of fine chemicals |
|
4.Cars |
|
|
|
5.Food processing and packing |
|
|
|
|
|
|
|
|
|
|
|
|
Performance summary: |
|
|
|
|
|
Date |
Rated Pressure |
Flow rate |
Inlet pressure |
In-Out size |
|
|
|
Model No |
bar |
ml/rpm |
bar |
mm |
|
|
CBS1-06 |
5 |
0.5 |
-1~0.5 |
1/8"NPT |
|
|
|
CBS1-12 |
3 |
1 |
|
|
|
CBS1-17 |
3 |
1.5 |
|
|
|
|
|
|
|
|
|
|
|
Pump construction |
|
Wetted Materials |
|
|
|
1. Gear pump |
1. Base material: SS304 |
|
|
2. Suction shoe style |
|
2. Gears: PEEK, PPS |
|
|
|
3. Spur gears |
|
3. Static Seal: PTFE |
|
|
|
4. stationary shafts |
|
|
|
|
|
|
5. PTFE bevel or O-ring seal |
|
|
|
|
|

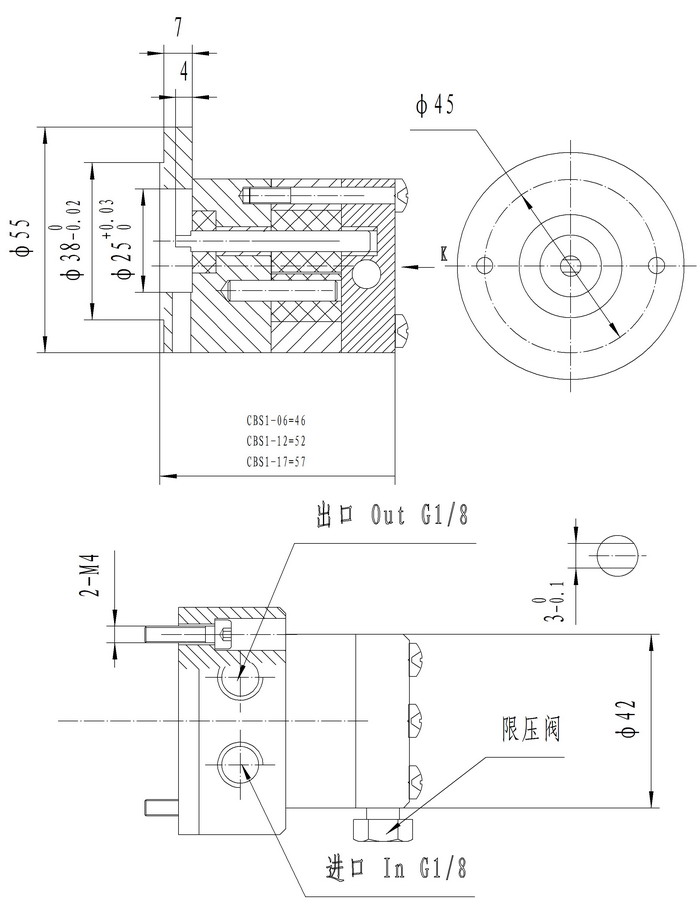

Pump Drawing:
|
|
|
